Climatology of precipitation and clouds over NORTH_ARAB
NORTH ARAB


General info
Precipitation
System properties
Cloud
Seasonal variation
Diurnal variation
Vertical Structure
Extreme events
Time series
  • Mean properties of precipitation system

  • During 1998-2013, total 115403 snapshots of precipitation features with size > 80 km^2 have been collected over NORTH_ARAB , where 2273 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 115403 211 543 5.9 0.7 0.15
    DJF 39071 291 726 4.9 0.6 0.07
    MAM 40130 191 463 6.0 0.7 0.18
    JJA 10640 44 84 8.5 0.5 0.06
    SON 25562 188 581 6.4 0.9 0.25

  • Extreme rainy events

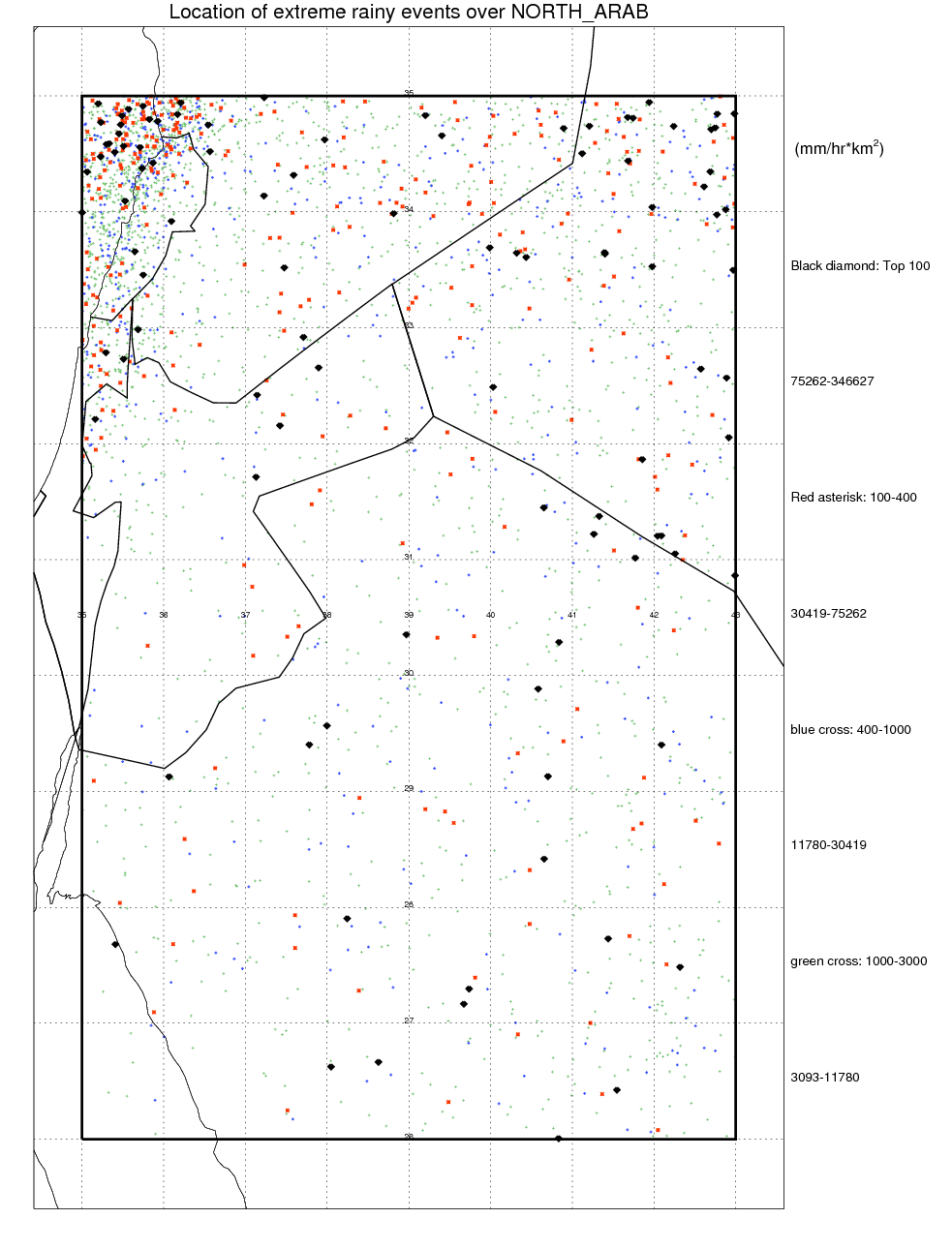

  • In all 115403 precipitation features, top 1% ( volumetric rain > 9924 mm/hr*km^2) rainy features contribute 62 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over NORTH_ARAB are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events

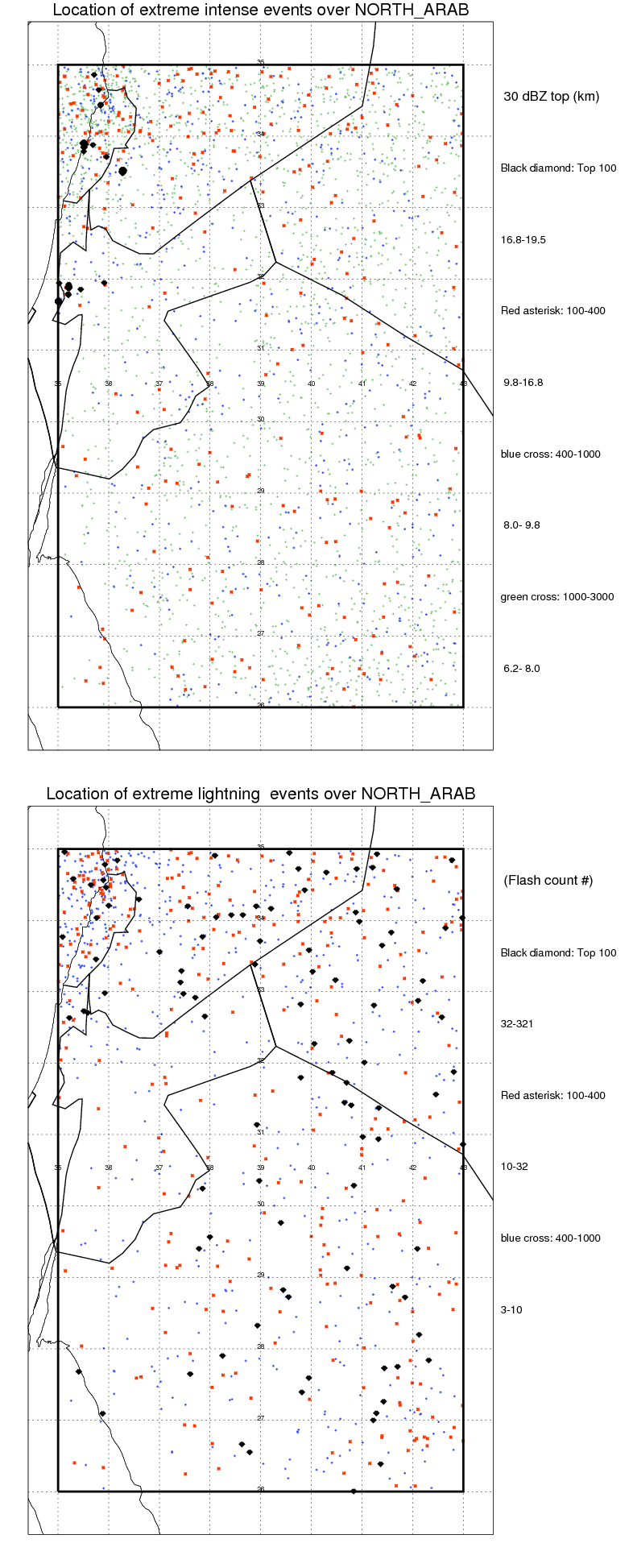

  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
