  • Mean properties of precipitation system

  • During 1998-2013, total 415933 snapshots of precipitation features with size > 80 km^2 have been collected over W_BAY_BNGL , where 4248 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 415933 325 1261 4.8 1.6 0.09
    DJF 65420 296 1183 4.4 1.5 0.01
    MAM 74865 265 1042 5.2 1.7 0.21
    JJA 113111 388 1543 4.9 1.4 0.11
    SON 162537 322 1198 4.7 1.8 0.05

  • Extreme rainy events

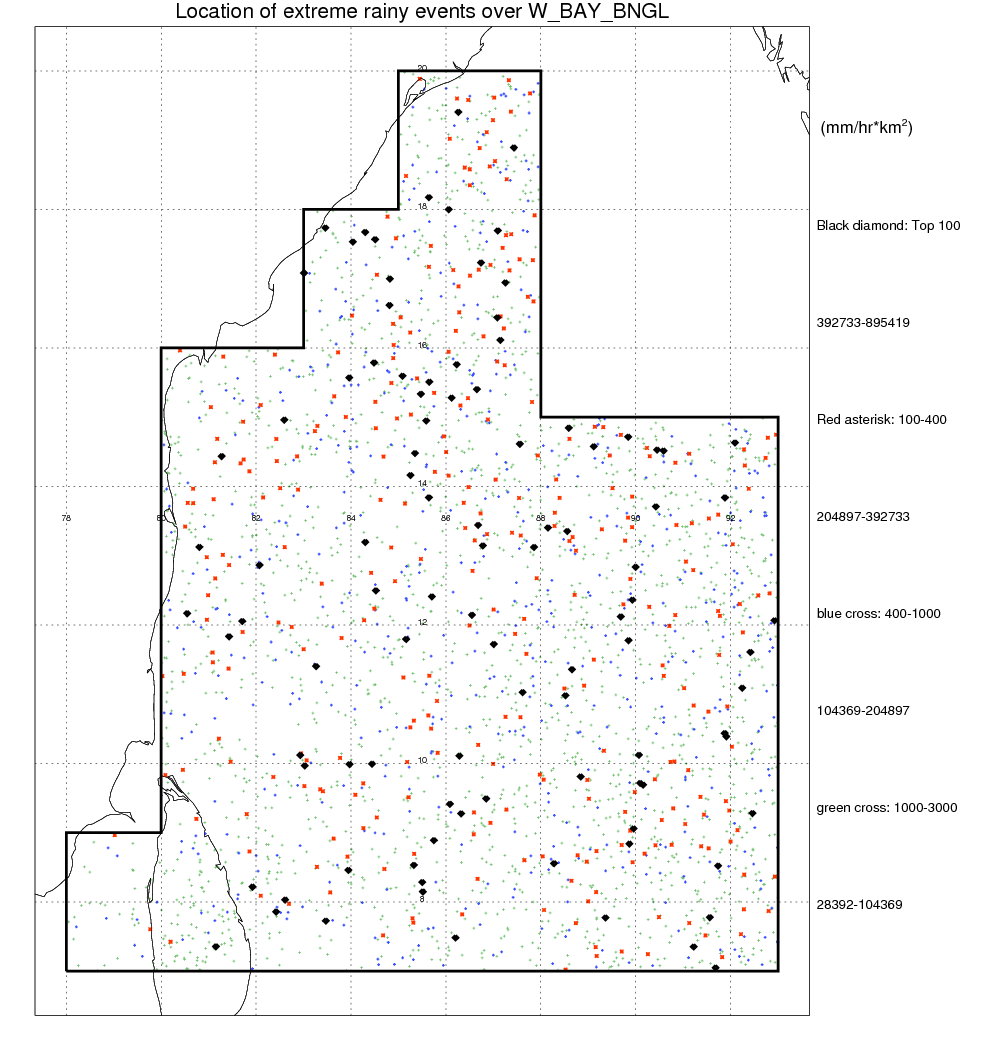

  • In all 415933 precipitation features, top 1% ( volumetric rain > 17938 mm/hr*km^2) rainy features contribute 68 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over W_BAY_BNGL are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events

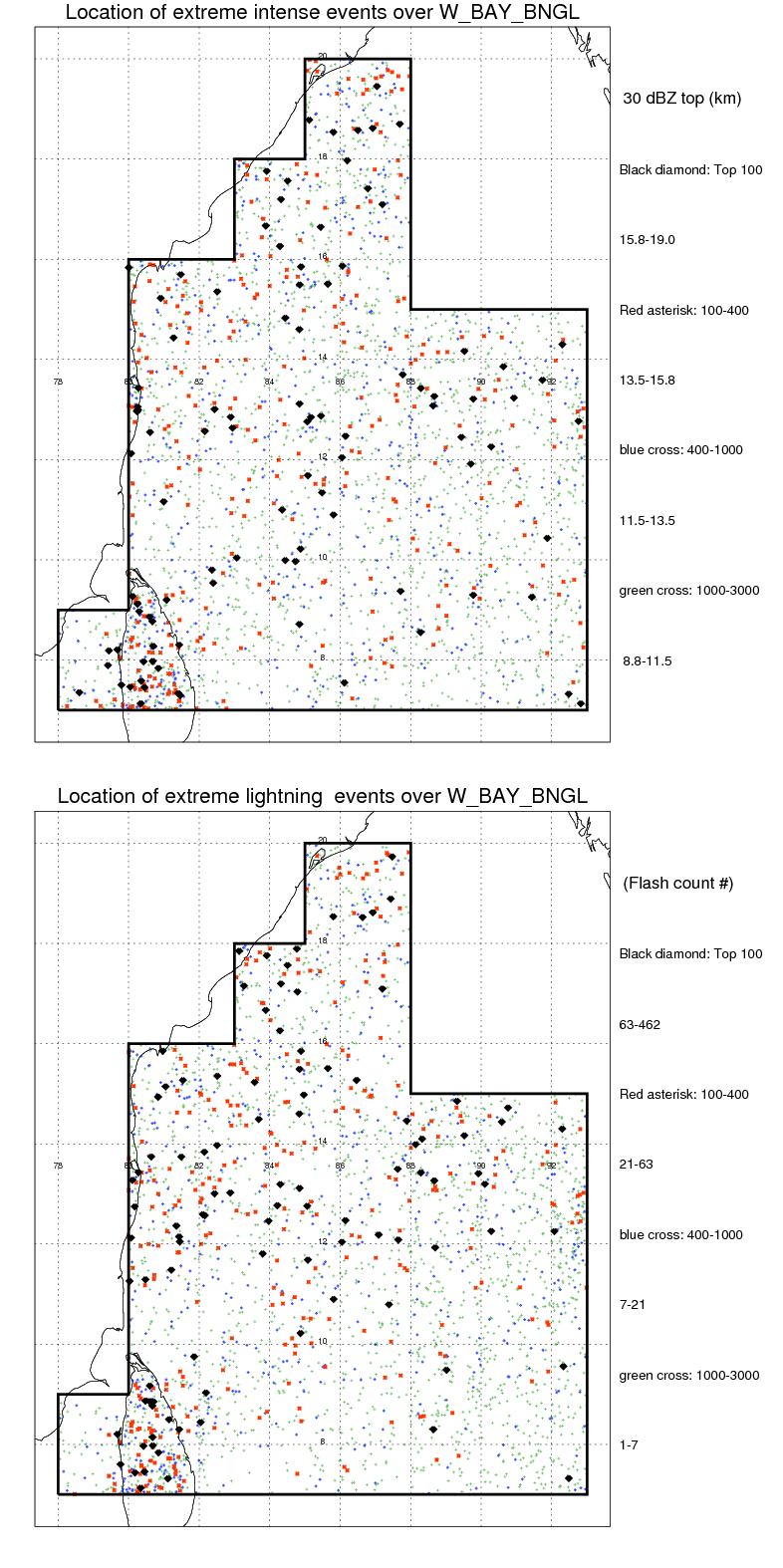

  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
