Climatology of precipitation and clouds over N_CHINA
N CHINA


General info
Precipitation
System properties
Cloud
Seasonal variation
Diurnal variation
Vertical Structure
Extreme events
Time series
  • Mean properties of precipitation system

  • During 1998-2013, total 513335 snapshots of precipitation features with size > 80 km^2 have been collected over N_CHINA , where 6953 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 513335 392 933 5.4 0.8 0.17
    DJF 70569 253 355 4.4 0.2 0.01
    MAM 127548 432 929 5.2 0.5 0.13
    JJA 190918 425 1295 6.0 1.3 0.35
    SON 124300 381 711 5.1 0.6 0.04

  • Extreme rainy events

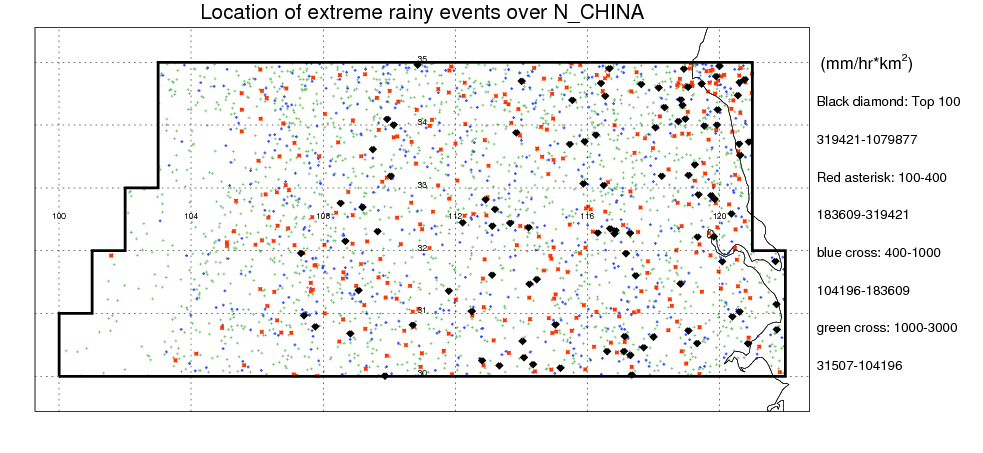

  • In all 513335 precipitation features, top 1% ( volumetric rain > 14788 mm/hr*km^2) rainy features contribute 75 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over N_CHINA are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events

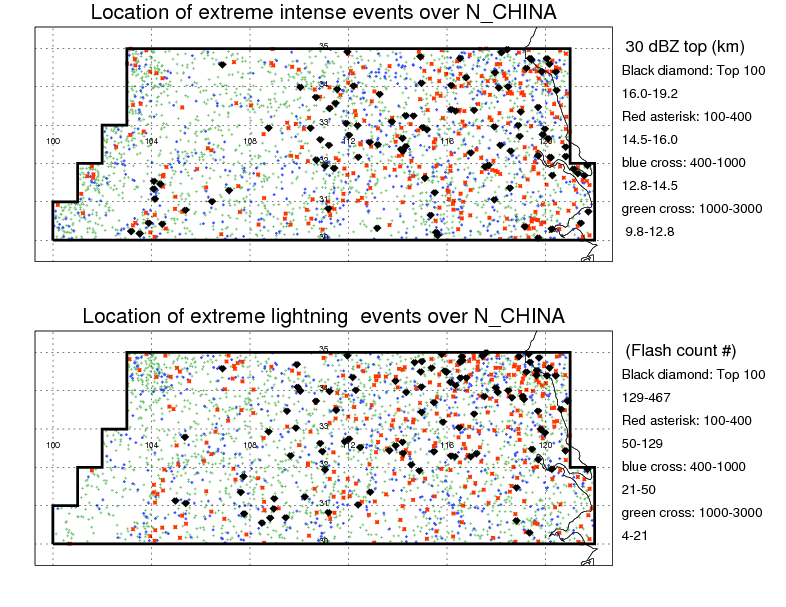

  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
