  • Mean properties of precipitation system

  • During 1998-2013, total 317226 snapshots of precipitation features with size > 80 km^2 have been collected over WEST_US , where 13166 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 317226 267 818 6.3 1.3 0.37
    DJF 66620 251 500 5.0 0.3 0.01
    MAM 63925 226 671 6.0 0.6 0.27
    JJA 118251 282 1046 7.3 2.1 0.66
    SON 68430 294 872 6.3 1.3 0.31

  • Extreme rainy events

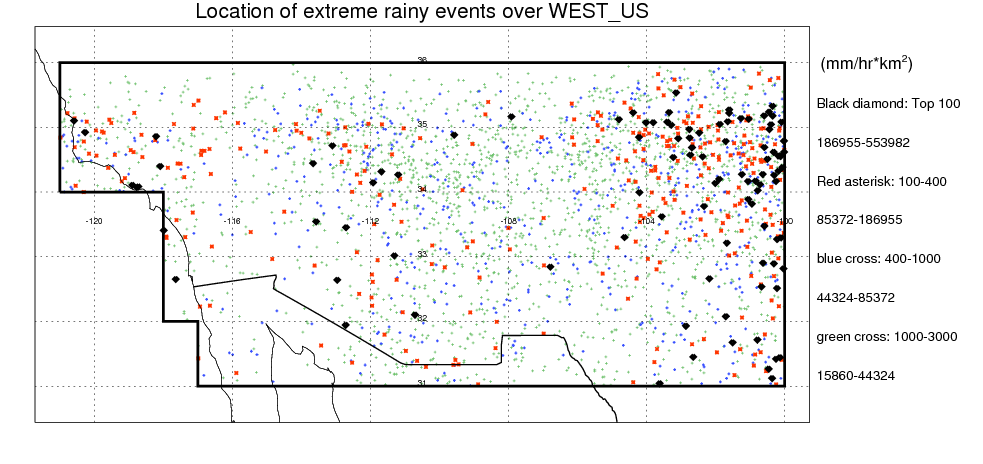

  • In all 317226 precipitation features, top 1% ( volumetric rain > 14964 mm/hr*km^2) rainy features contribute 58 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over WEST_US are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events

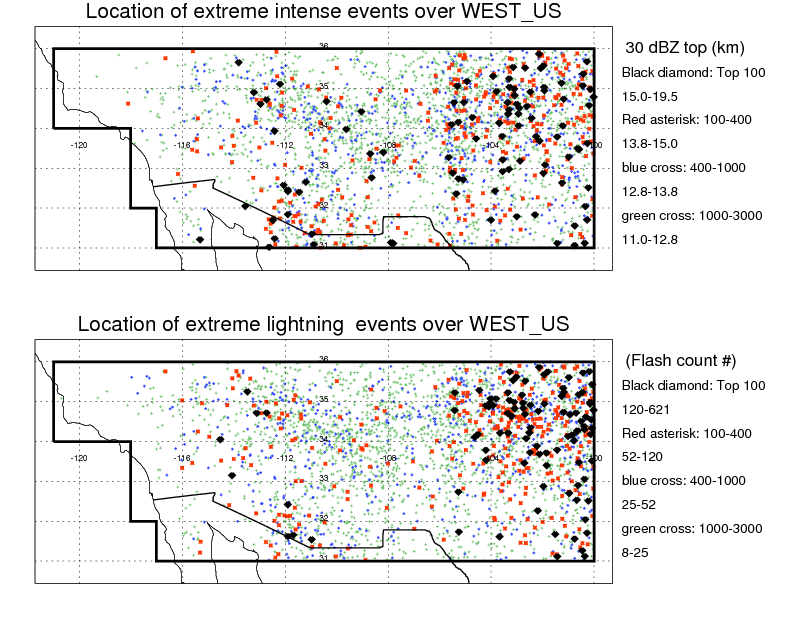

  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
