Climatology of precipitation and clouds over INTER_AREA
INTER AREA


General info
Precipitation
System properties
Cloud
Seasonal variation
Diurnal variation
Vertical Structure
Extreme events
Time series
  • Mean properties of precipitation system

  • During 1998-2013, total 3253206 snapshots of precipitation features with size > 80 km^2 have been collected over INTER_AREA , where 7441 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 3253206 189 579 3.4 0.9 0.01
    DJF 801223 210 617 3.1 0.7 0.01
    MAM 652082 233 692 3.3 0.7 0.01
    JJA 798451 125 376 3.6 1.1 0.01
    SON 1001450 194 635 3.6 1.1 0.01

  • Extreme rainy events

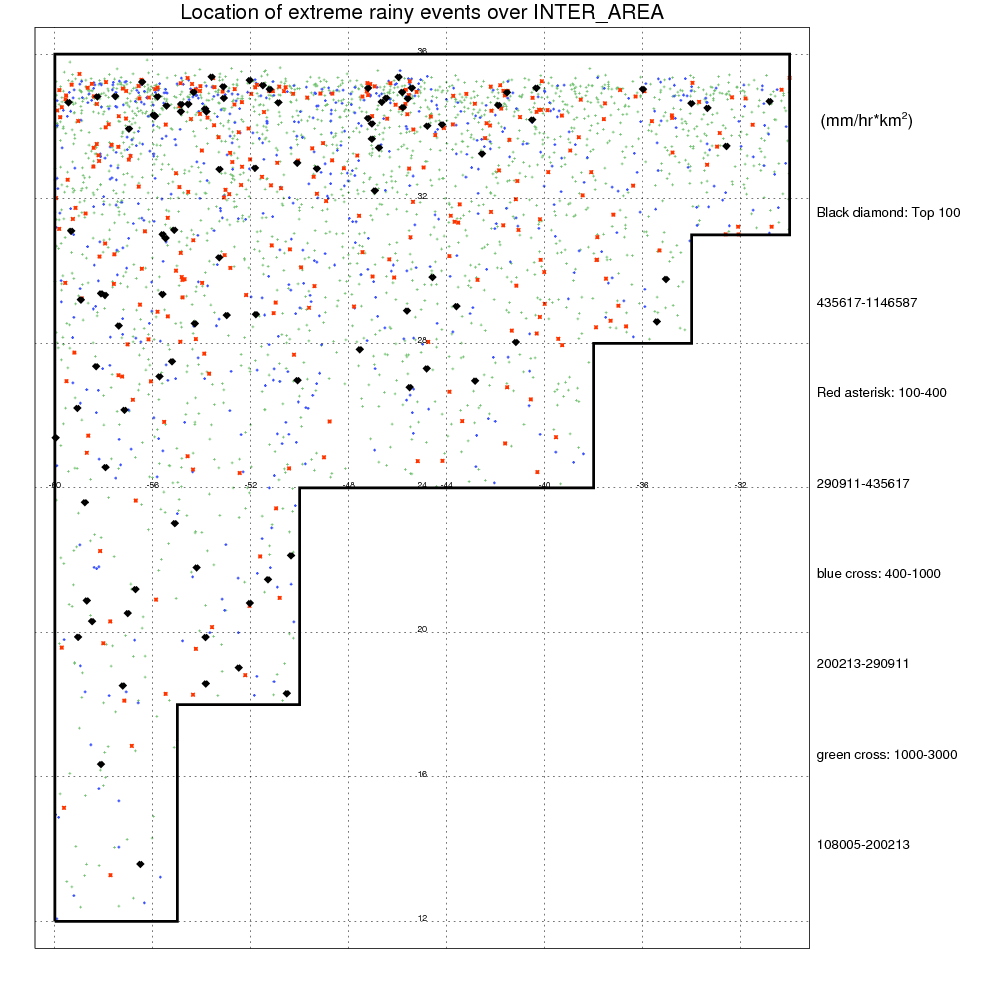

  • In all 3253206 precipitation features, top 1% ( volumetric rain > 5938 mm/hr*km^2) rainy features contribute 67 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over INTER_AREA are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events

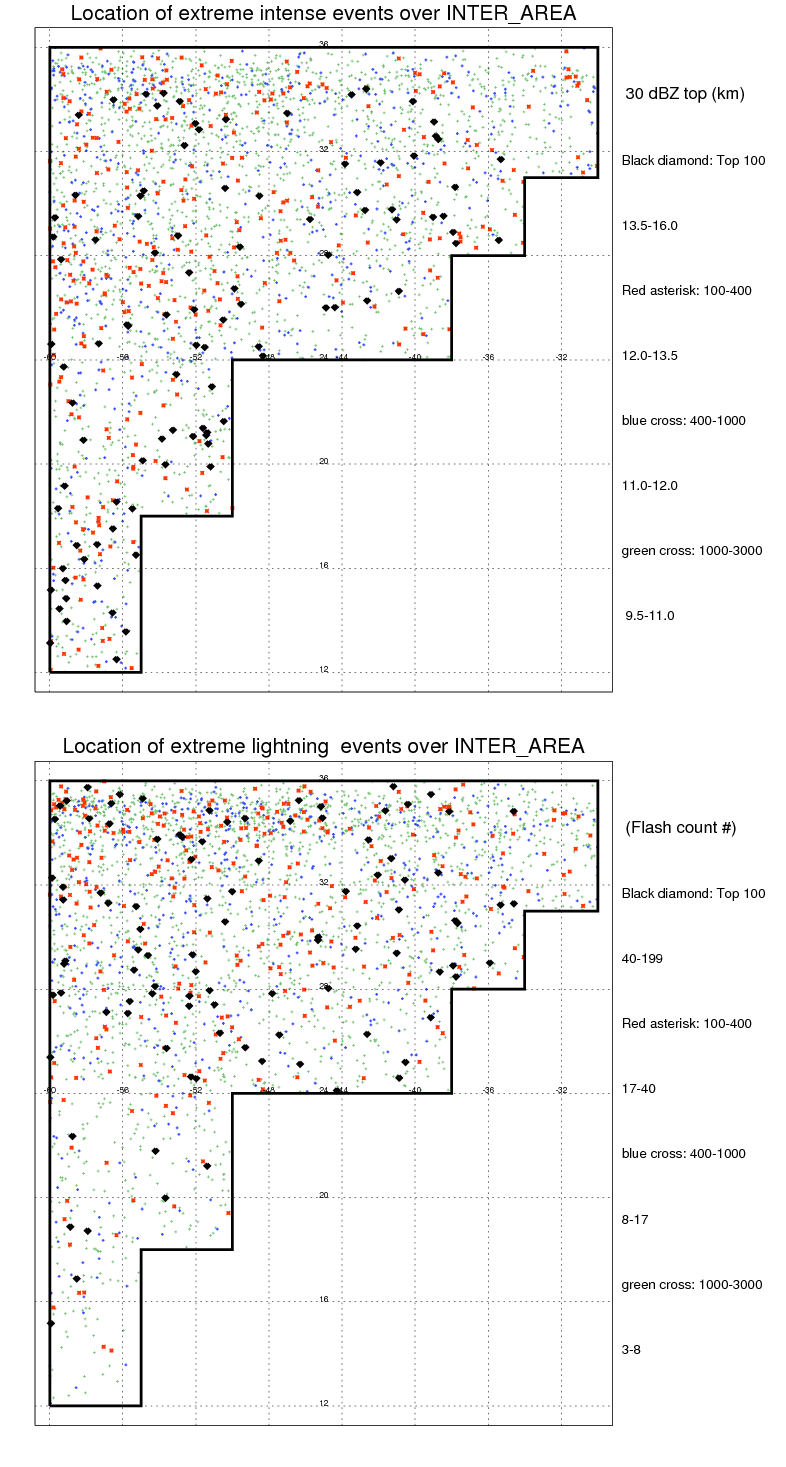

  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
