Climatology of precipitation and clouds over W_PACIFIC_ITCZ
W PACIFIC ITCZ


General info
Precipitation
System properties
Cloud
Seasonal variation
Diurnal variation
Vertical Structure
Extreme events
Time series
  • Mean properties of precipitation system

  • During 1998-2013, total 4256090 snapshots of precipitation features with size > 80 km^2 have been collected over W_PACIFIC_ITCZ , where 5074 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 4256090 263 895 3.7 1.0 0.00
    DJF 986022 241 786 3.4 0.9 0.01
    MAM 926061 226 776 3.6 0.9 0.01
    JJA 1167919 290 1006 3.9 1.1 0.00
    SON 1176088 284 971 3.8 1.0 0.00

  • Extreme rainy events

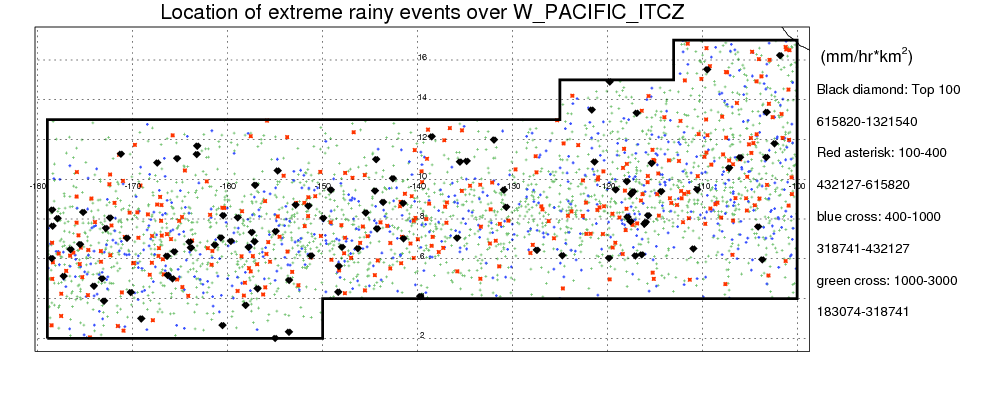

  • In all 4256090 precipitation features, top 1% ( volumetric rain > 11630 mm/hr*km^2) rainy features contribute 67 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over W_PACIFIC_ITCZ are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events

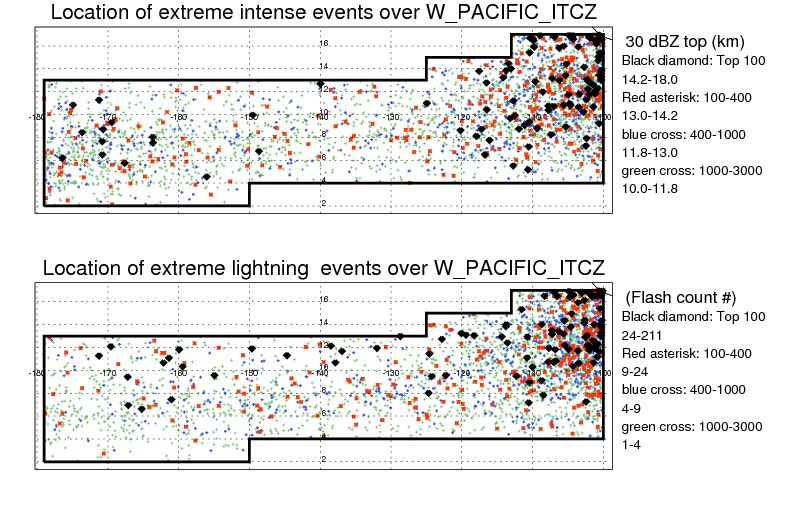

  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
