Climatology of precipitation and clouds over Gulf_Guinea
Gulf Guinea


General info
Precipitation
System properties
Cloud
Seasonal variation
Diurnal variation
Vertical Structure
Extreme events
Time series
  • Mean properties of precipitation system

  • During 1998-2013, total 244934 snapshots of precipitation features with size > 80 km^2 have been collected over Gulf_Guinea , where 4428 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 244934 297 1289 4.6 1.3 0.16
    DJF 66781 285 1295 4.9 1.6 0.20
    MAM 74293 349 1577 5.2 1.6 0.28
    JJA 39332 268 1100 3.9 0.9 0.04
    SON 64528 268 1068 3.9 0.9 0.05

  • Extreme rainy events

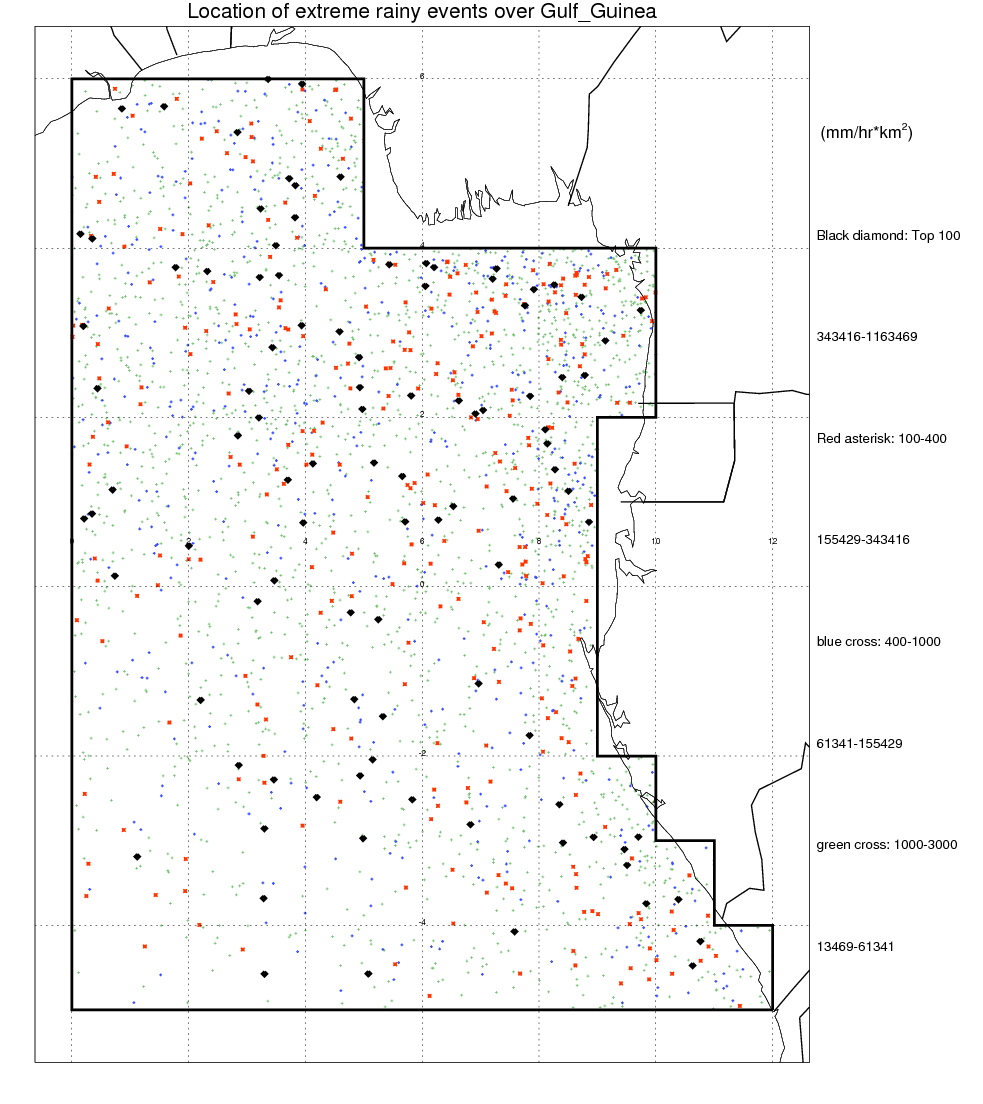

  • In all 244934 precipitation features, top 1% ( volumetric rain > 18085 mm/hr*km^2) rainy features contribute 70 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over Gulf_Guinea are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events

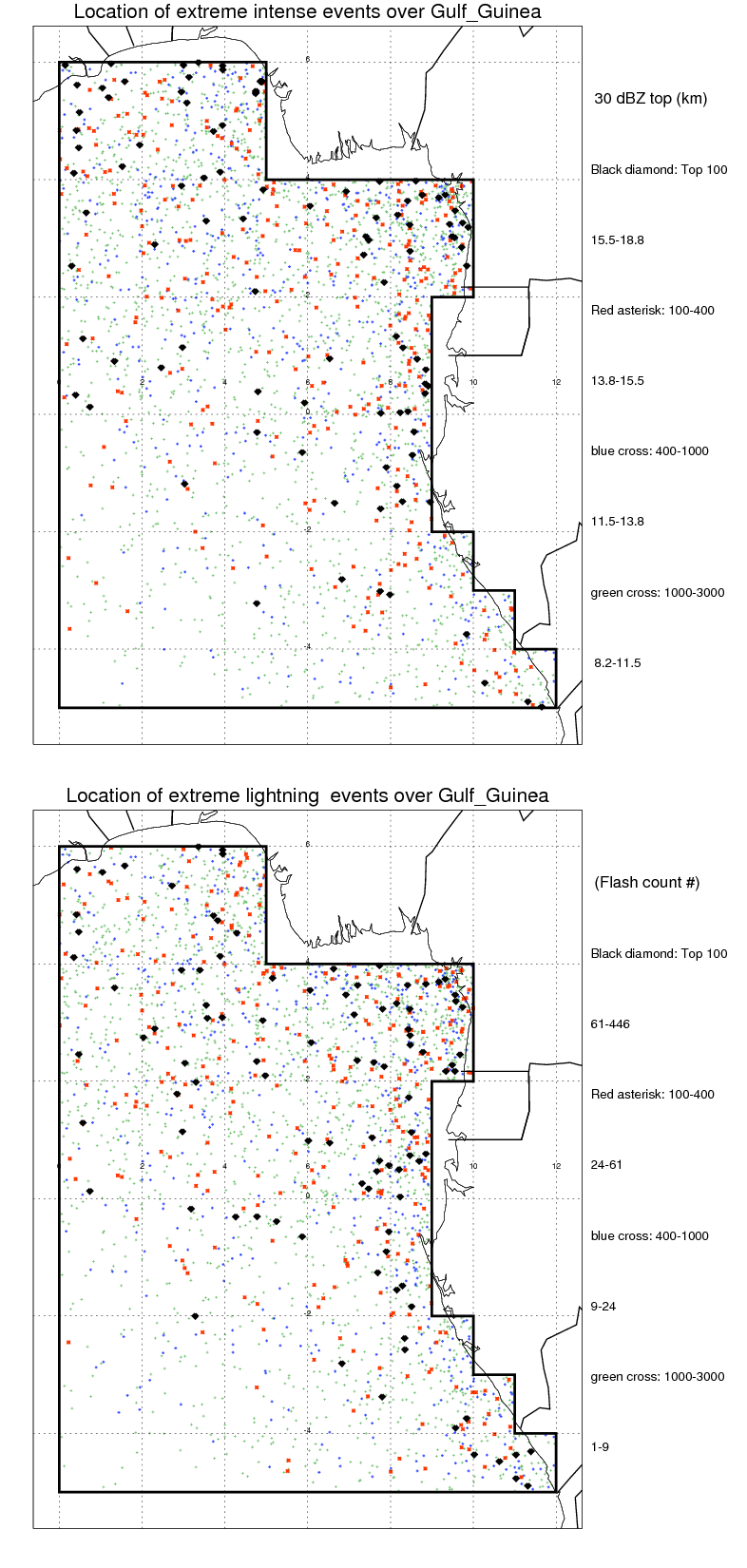

  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
