Climatology of precipitation and clouds over Canary_Basin_off_Morocco
Canary Basin off Morocco


General info
Precipitation
System properties
Cloud
Seasonal variation
Diurnal variation
Vertical Structure
Extreme events
Time series
  • Mean properties of precipitation system

  • During 1998-2013, total 922153 snapshots of precipitation features with size > 80 km^2 have been collected over Canary_Basin_off_Morocco , where 2252 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 922153 172 477 3.3 0.6 0.01
    DJF 296350 211 596 3.2 0.6 0.01
    MAM 219621 171 446 3.3 0.6 0.01
    JJA 95632 71 154 3.7 0.4 0.01
    SON 310550 166 484 3.3 0.7 0.02

  • Extreme rainy events

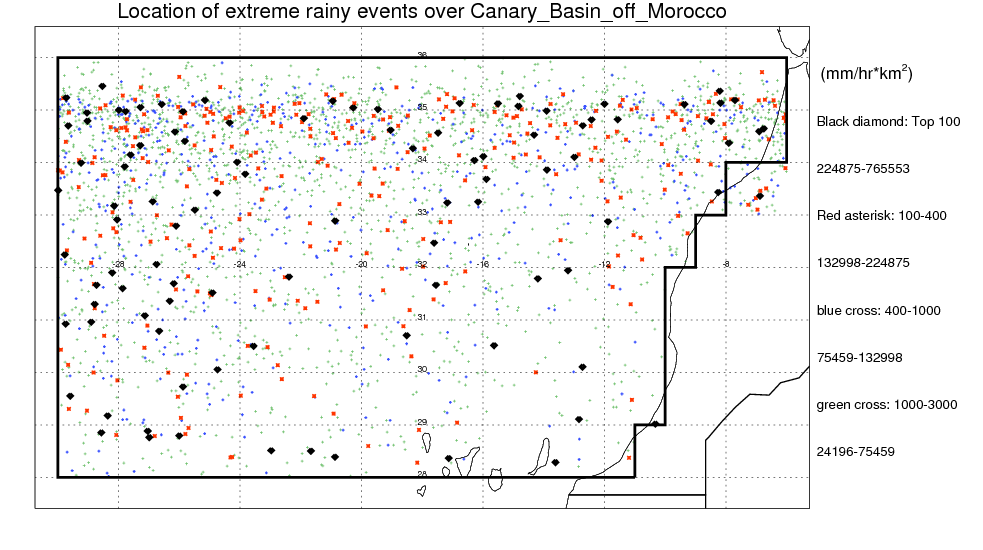

  • In all 922153 precipitation features, top 1% ( volumetric rain > 5299 mm/hr*km^2) rainy features contribute 67 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over Canary_Basin_off_Morocco are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events

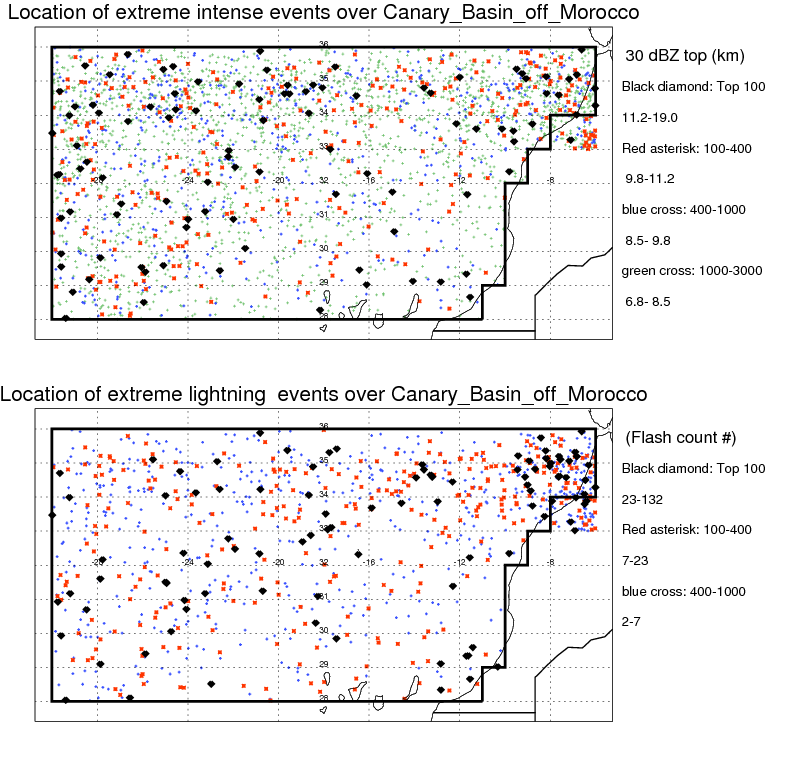

  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
