  • Mean properties of precipitation system

  • During 1998-2013, total 115619 snapshots of precipitation features with size > 80 km^2 have been collected over Savanna_Botswana_Zimbabwe , where 5521 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 115619 314 928 6.4 1.6 0.42
    DJF 53920 356 1060 6.2 1.9 0.42
    MAM 27282 277 791 6.1 1.6 0.31
    JJA 6595 116 293 7.3 0.4 0.15
    SON 27822 317 959 6.8 1.5 0.58

  • Extreme rainy events

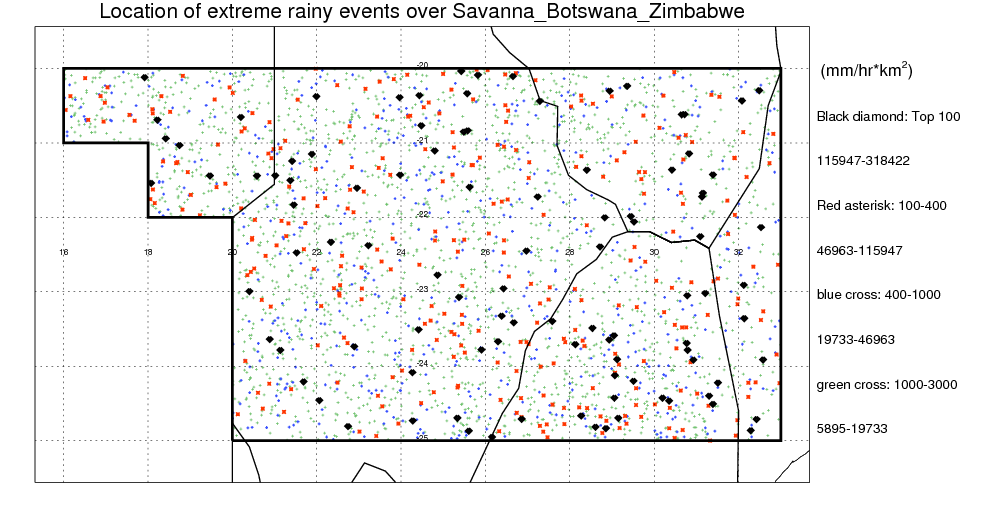

  • In all 115619 precipitation features, top 1% ( volumetric rain > 17106 mm/hr*km^2) rainy features contribute 55 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over Savanna_Botswana_Zimbabwe are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events
  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
