Climatology of precipitation and clouds over Savanna_Angola_Zambia
Savanna Angola Zambia


General info
Precipitation
System properties
Cloud
Seasonal variation
Diurnal variation
Vertical Structure
Extreme events
Time series
  • Mean properties of precipitation system

  • During 1998-2013, total 166827 snapshots of precipitation features with size > 80 km^2 have been collected over Savanna_Angola_Zambia , where 8651 of them have lightning flashes inside. Some mean properties of these features are listed below:
    samples (#) mean size (km^2) mean volumetric rain (mm/hr*km^2) mean echo top (km) mean 30 dBZ ehco top (km)mean flash count (#)
    All 166827 388 1223 6.5 2.0 0.37
    DJF 83507 423 1302 6.2 2.0 0.31
    MAM 42701 345 1088 6.4 2.1 0.27
    JJA 3563 79 226 9.4 0.4 0.14
    SON 37056 390 1298 6.9 2.2 0.63

  • Extreme rainy events

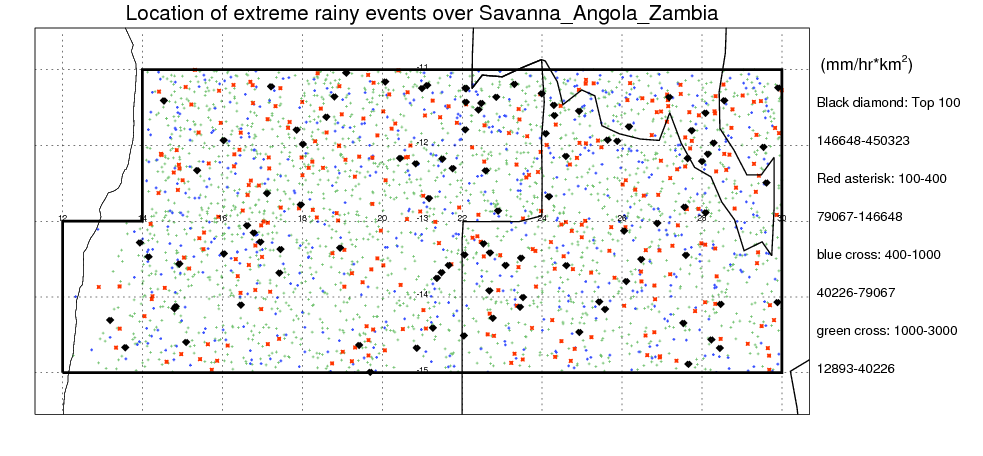

  • In all 166827 precipitation features, top 1% ( volumetric rain > 24409 mm/hr*km^2) rainy features contribute 52 % of total rainfall. Top 100 rainiest events observed by TRMM during 1998-2013 over Savanna_Angola_Zambia are listed here . Following figure shows the location of the precipitation feautres categorized by the volumetric rainfall.


  • Extreme intense events

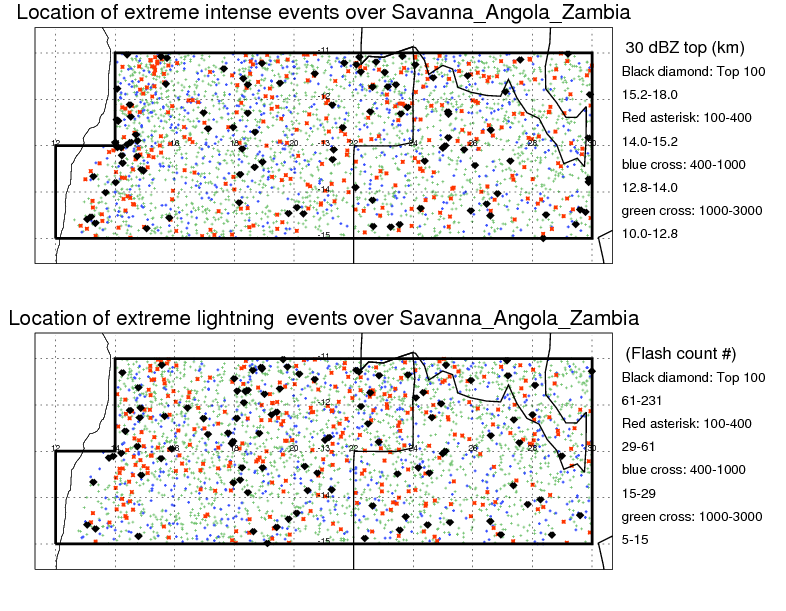

  • Some of the precipitation sytems are much intense with large hails and many lightning than others (see the lists of top lightning storms. Following figure shows the location of the precipitation feautres categorized by the lightning rate and 30 dBZ echo top.
