Climatology of precipitation and clouds over E_SPCZ
E SPCZ


General info
Precipitation
System properties
Cloud
Seasonal variation
Diurnal variation
Vertical Structure
Extreme events
Time series
  • Precipitation diurnal variation

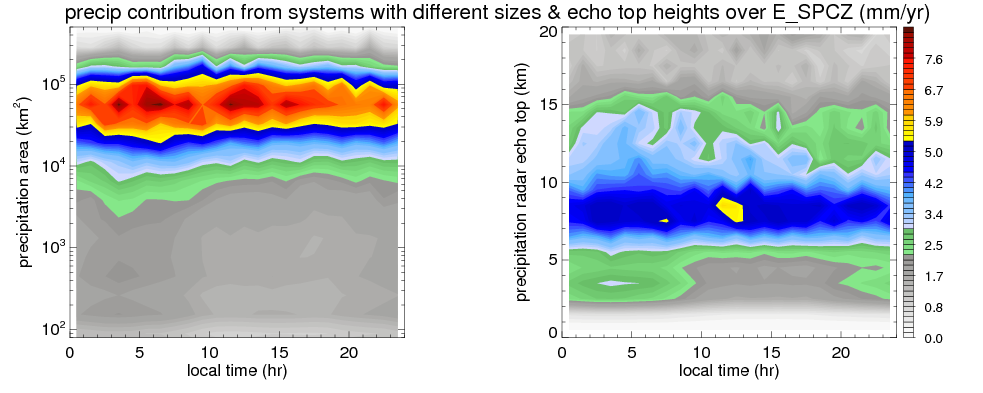

  • Many studies suggested that the diurnal variation of the precipitation is related to the life cycles of the precipitation systems, which is frequently driven by the surface sensible heating. Over E_SPCZ, mean annual precipitation are estimated with 1198.6 (mm/year) from precipitation radar. Detailed diurnal variation of the precipitation at high resolution can be accessed here (NOTE: it may take long time to generate for a large area). The diurnal variation of precipitation from systems with different sizes and heights are shown below:

    In total, thunderstorms (systems with detected lightning flashes) contribute 10 %, MCSs (Mesoscale convective systems with raining area > 2000 km^2) contribute 73 % of all precipitation over E_SPCZ. Diurnal variations of fraction of precipitation from thunderstorms and MCSs over E_SPCZ are shown below:

  • Cloud day vs. night differences

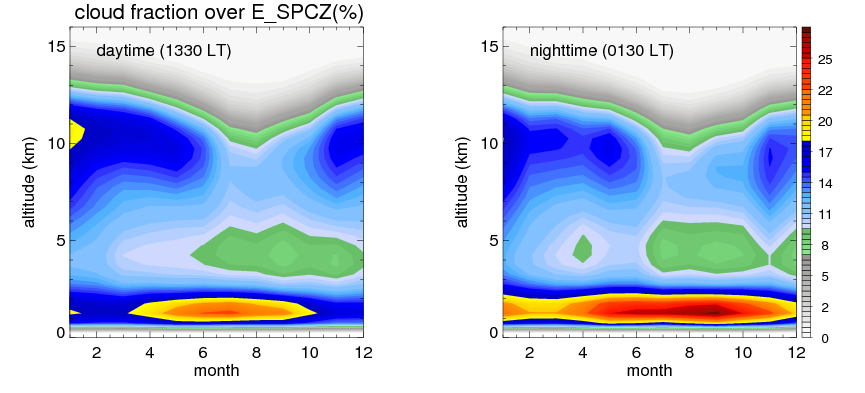

  • Certainly there is a strong diurnal variation of different types of clouds. Because CloudSat observes at 0130 and 1330 local time, here the daytime and night cloud fraction in different seasons are presented:
